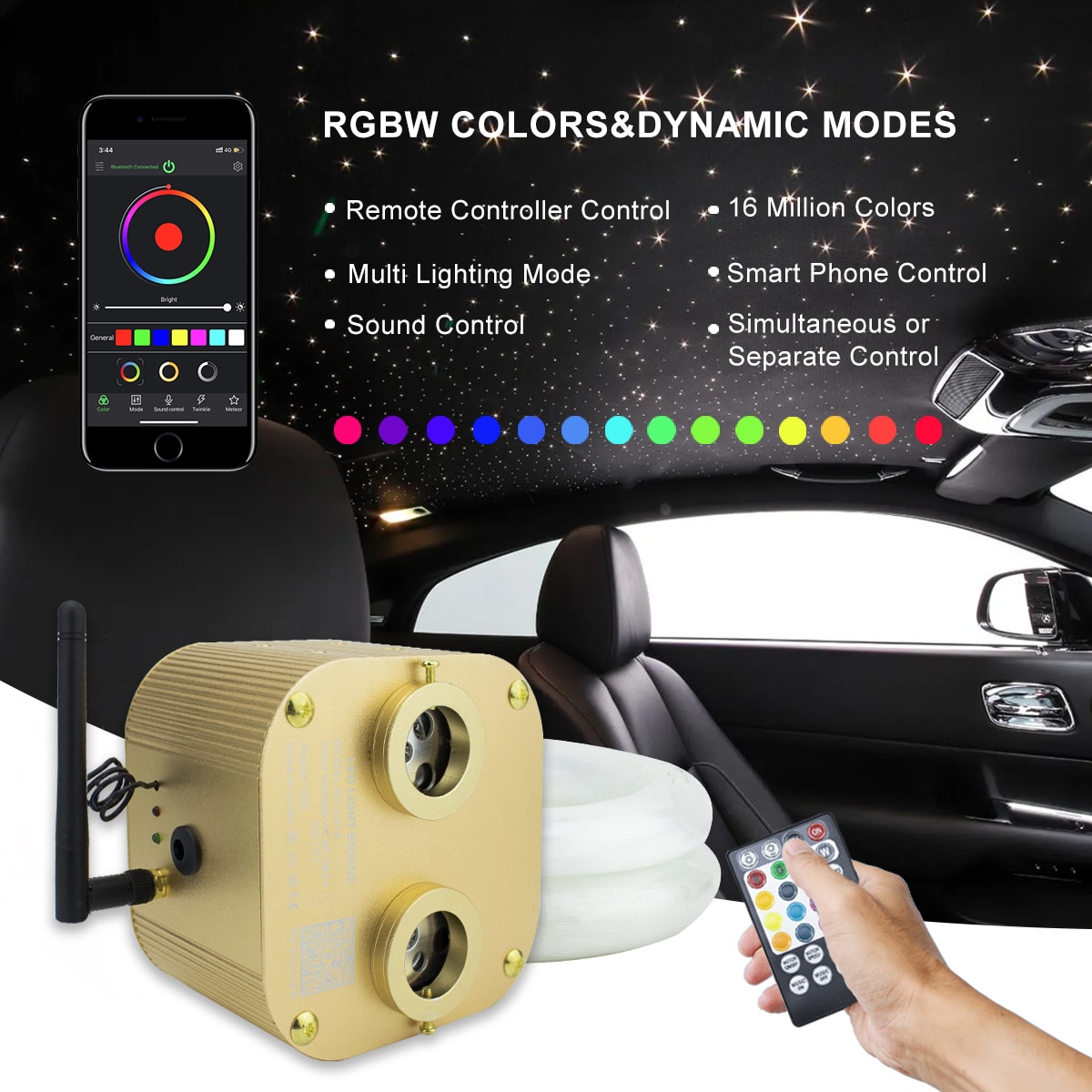

Double Heads Smart APP 20W Twinkle Fiber Optic Light engine with RF control 4M Optic Cable for Starry Effect Ceiling Lighting

Size: 20w|  Control:28key Remote&Bluetooth app

Techincal Specification:

Model: QJ-L020W

Input voltage: AC 86~265V /DC12V
Power: 20W
Color: RGBW

Net Weight: 680g

Light source device size: L110*W83*H110mm

Light body material: Aluminum

Remoter dimension: L85*W52*H7mm
Lifetime: 50,000 hours

LED: CREE high power LED

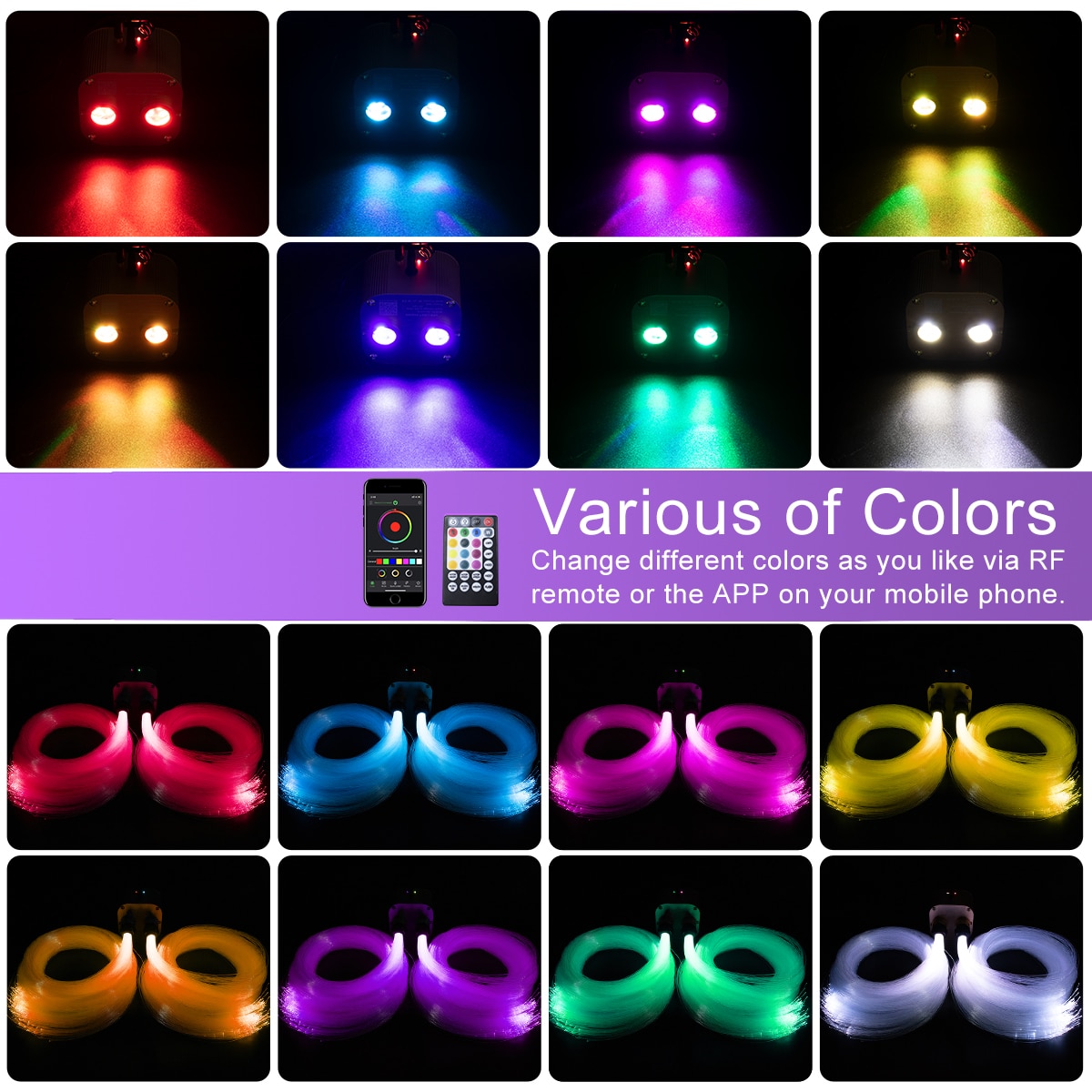

Light change mode:Stati color(Mixd white,Pure white,Red,Green,Blue,Yellow,Ice blue,Pink+DIY color),jump,fade,four-speed twinkle ,Brightness control,mode speed,

Gross Weight: 780g

Fiber head inner diameter: 20mm

Remote: 28Key RF

Package Size: L220*W157*H86mm

Warranty:  2 years

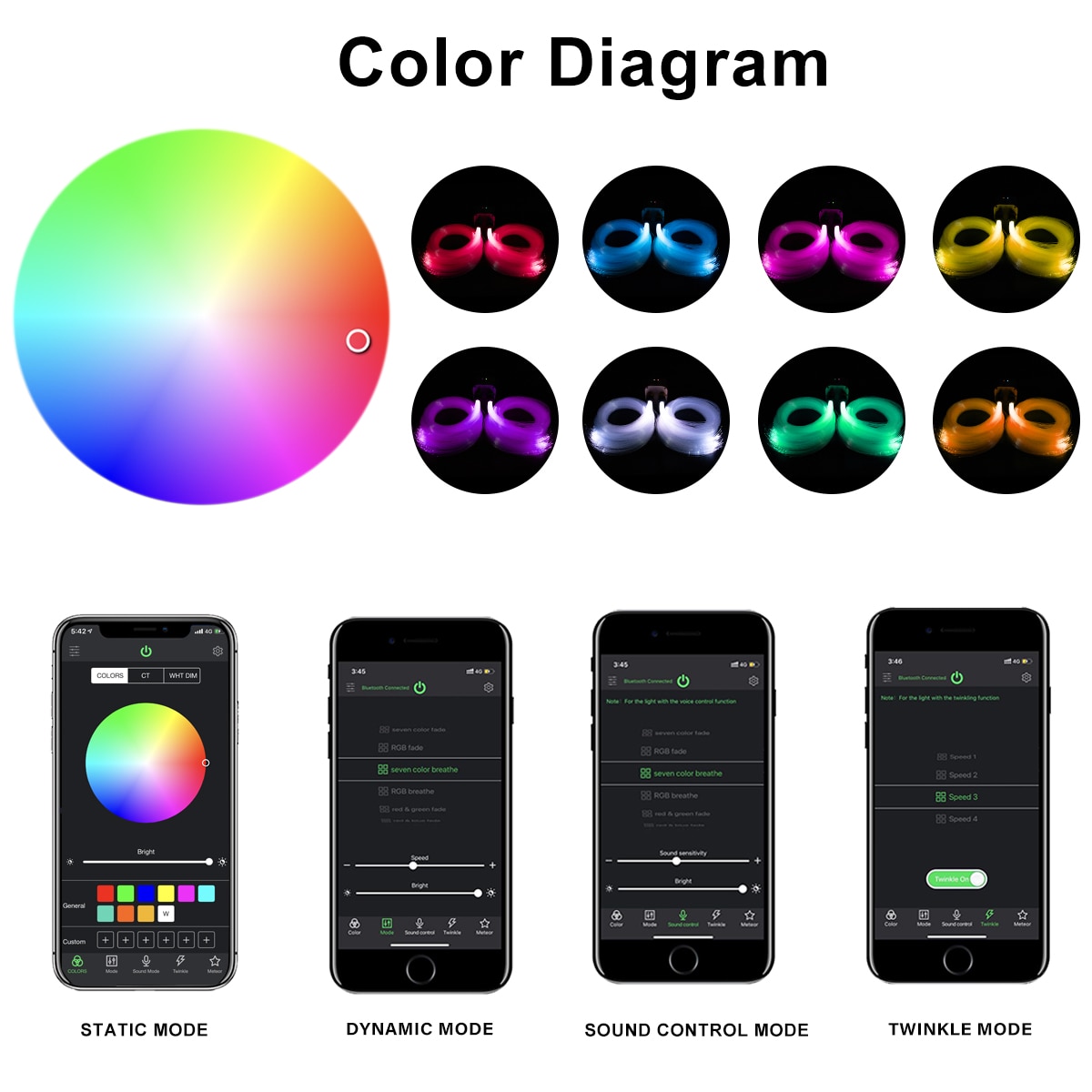

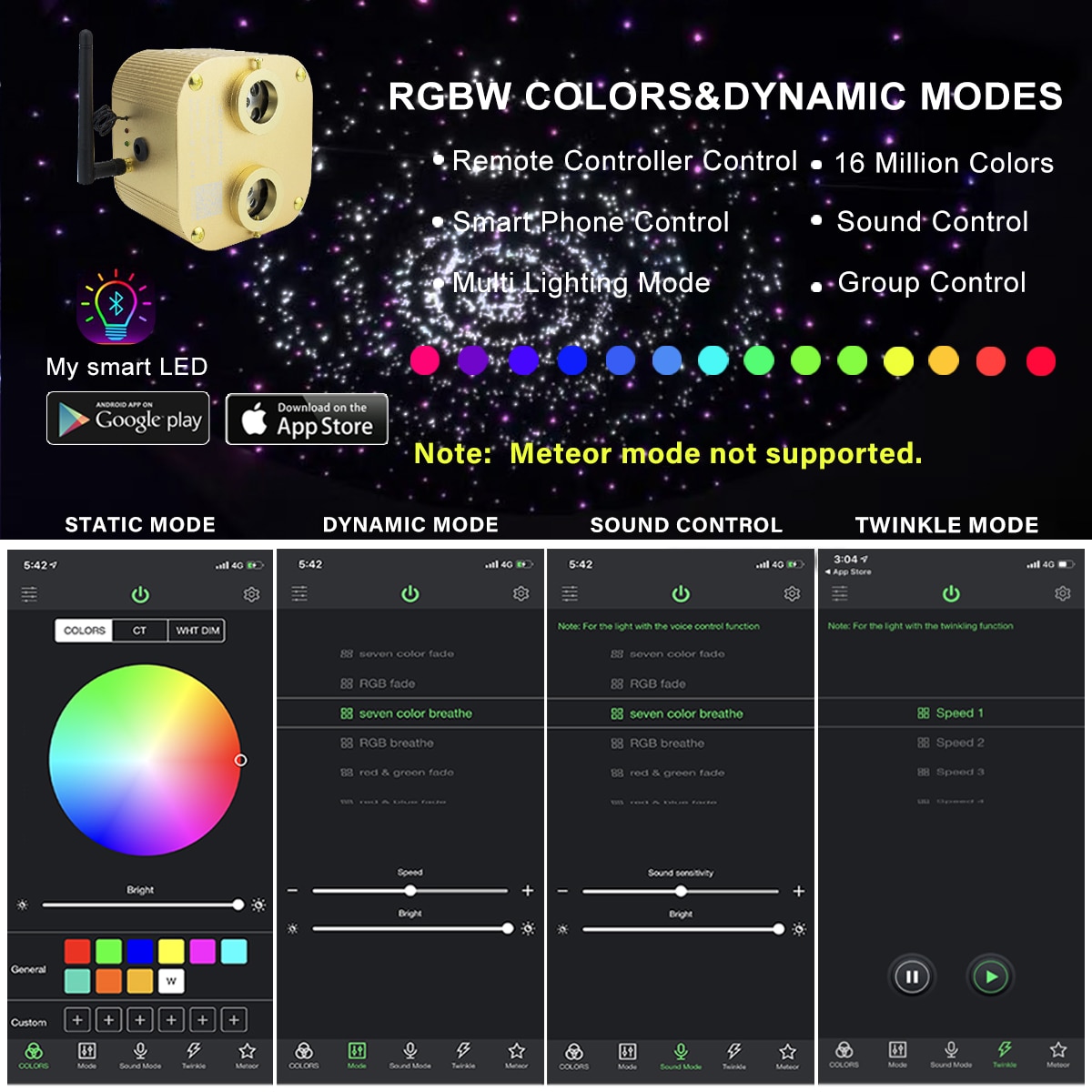

APP Control  :

1. Please download the “My smart LED” APP

2 Connect a Bluetooth device

(1)open the Bluetooth of the mobile phone;

(2)power on the lamp; then open the APP;

(3)at this time, the app will automatically connect to the Bluetooth light fixture.

**Don’t manually connect Bluetooth to this device in your phone settings.

Fiber Optic Cable ( choose one of these size)
	Fiber Detail	Total
Model 1	2pcs of Mixed 335*4M 2×(250pcs*0.75mm+70pcs*1.0mm+15pcs*1.5mm)*4M	670⭐
Model 2	2pcs of Mixed 265*3M 2×(220pcs*0.75mm+40pcs*1.0mm+5pcs*1.5mm)*3m	530⭐
Model 3	2pcs of Mixed 310*3M 2×(250pcs*0.75mm+50pcs*1.0mm+10pcs*1.5mm)*3m	620⭐
Model 4	2pcs of Mixed 355pcs*4M 2×(280pcs*0.75mm+60pcs*1.0mm+15pcs*1.5mm)*4m	710⭐
Model 5	2pcs of 300pcs 4M 2×300pcs*0.75mm*4M	600⭐
Model 6	2pcs of 550pcs 4M 2×550pcs*0.75mm*4M	1100⭐
Model 7	2pcs of 400pcs 4M 2×400pcs*0.75mm*4M	800⭐
Model 8	2pcs of Mixed 415pcs 4M 2×(335pcs*0.75mm+60pcs*1.0mm+20pcs*1.5mm)*4M	830⭐
Model 9	2pcs of Mixed 460 4M 2×(400pcs*0.75mm+45pcs*1.0mm+15pcs*1.5mm)*4M	920⭐

1x 20w RGBW twinkle light engine ( Bluetooth APP + Music control ）

1x RF remote controller(NOT Included battery)

1x power adapter

2x Fiber Optic Cable

1x Use Manual book

•


• We have EU / US / UK / AU standard plug, we default to send in accordance with national standards and, if special needs, please leave a message

•

Remote instructions:

Maximum fiber connection formula:

Each Port fiber head inner diameter:20MM

The number of optical fiber can be installed:

The number of optical fiber can be installed:
